COLOR LAB

AUTOMATIC DISPENSER FOR LABORATORIES

COLOR LAB FEATURES

Process optimization

Designed to optimize the formulation process in laboratories through the production of 100 cc samples.

Reduced consumption and waste

Uses up to 90% less base and colorant compared to traditional 1-liter formulations, reducing material usage and lowering disposal costs.

Fast, simultaneous dispensing

Bases and colorants are dispensed simultaneously, enabling any sample to be prepared in under one minute from an empty can.

Simplified base management

Removes the need for pre-filled bases, freeing up space and simplifying formulation workflow.

Integration with Mini Mixer

Can be combined with the Mini Mixer for mixing up to three 100 cc samples in 30 seconds, ensuring speed, ergonomics and continuity of operation even in high-productivity laboratories.

Absolute precision and repeatability

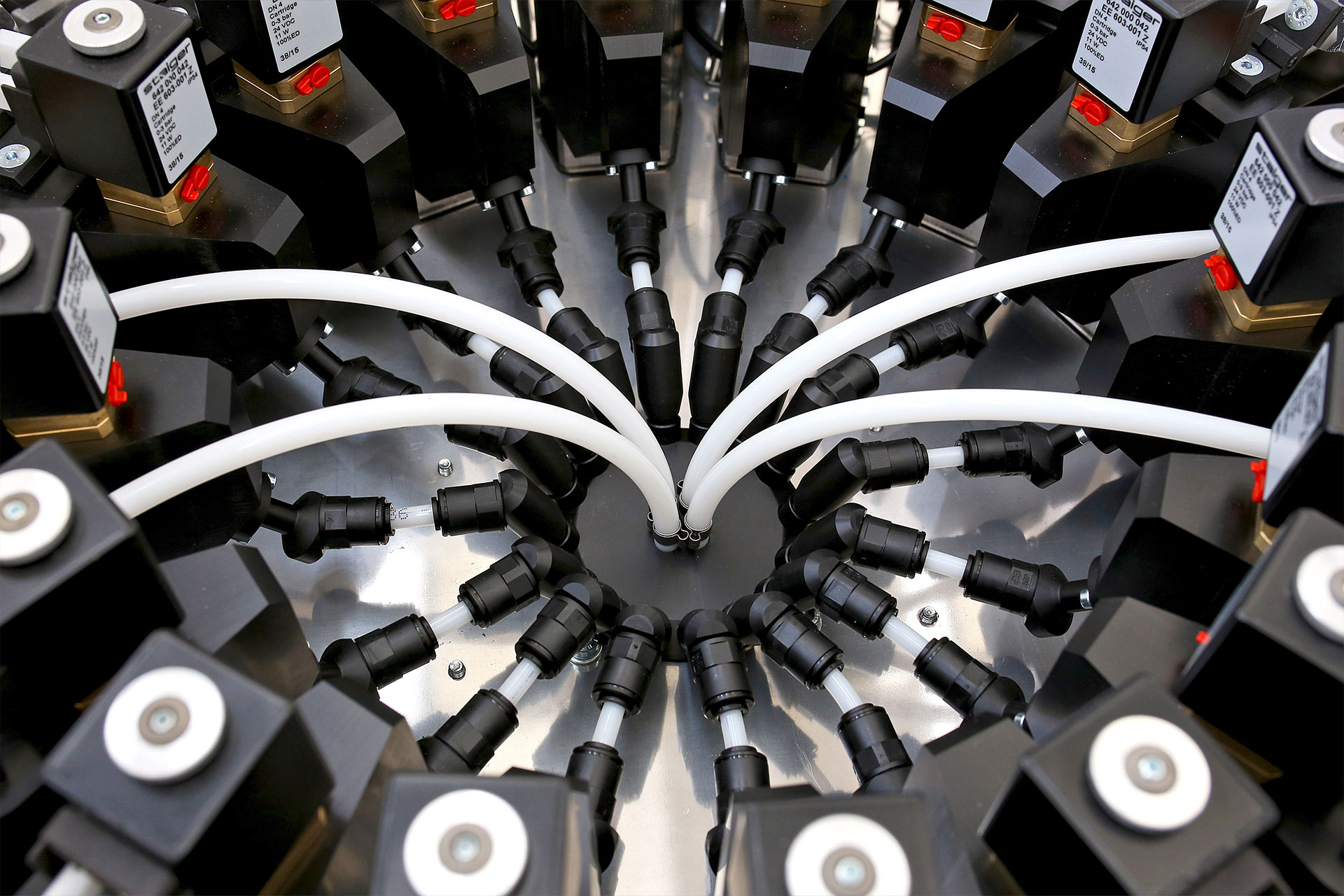

The patented Alfa pump automatically purges air before each dispense, delivering ultra-precise dosing down to 0.0077 cc. Experience consistent, flawless results, even at the smallest volumes.

Each circuit is independent

For bases and colorants, different recirculation and stirring parameters can be set, keeping each product under optimal conditions.

Remote support and minimal maintenance

Bidirectional communication allows technicians to monitor the machine, resolve issues remotely, and drastically reduce downtime.

Choose Color lab for faster, more precise and sustainable color sample formulation. Produce 100 cc samples in under one minute, with bases and colorants dispensed simultaneously.

Reduce material use, waste and operating costs, while eliminating the need for traditional 1-liter formulations, even for lighter shades.
Reliable, repeatable, and designed for continuous lab operation, Color Lab is the ideal solution to save time and optimize resources in your daily sample production.

Color Lab is the ideal solution for optimizing time and resources in daily sample production.

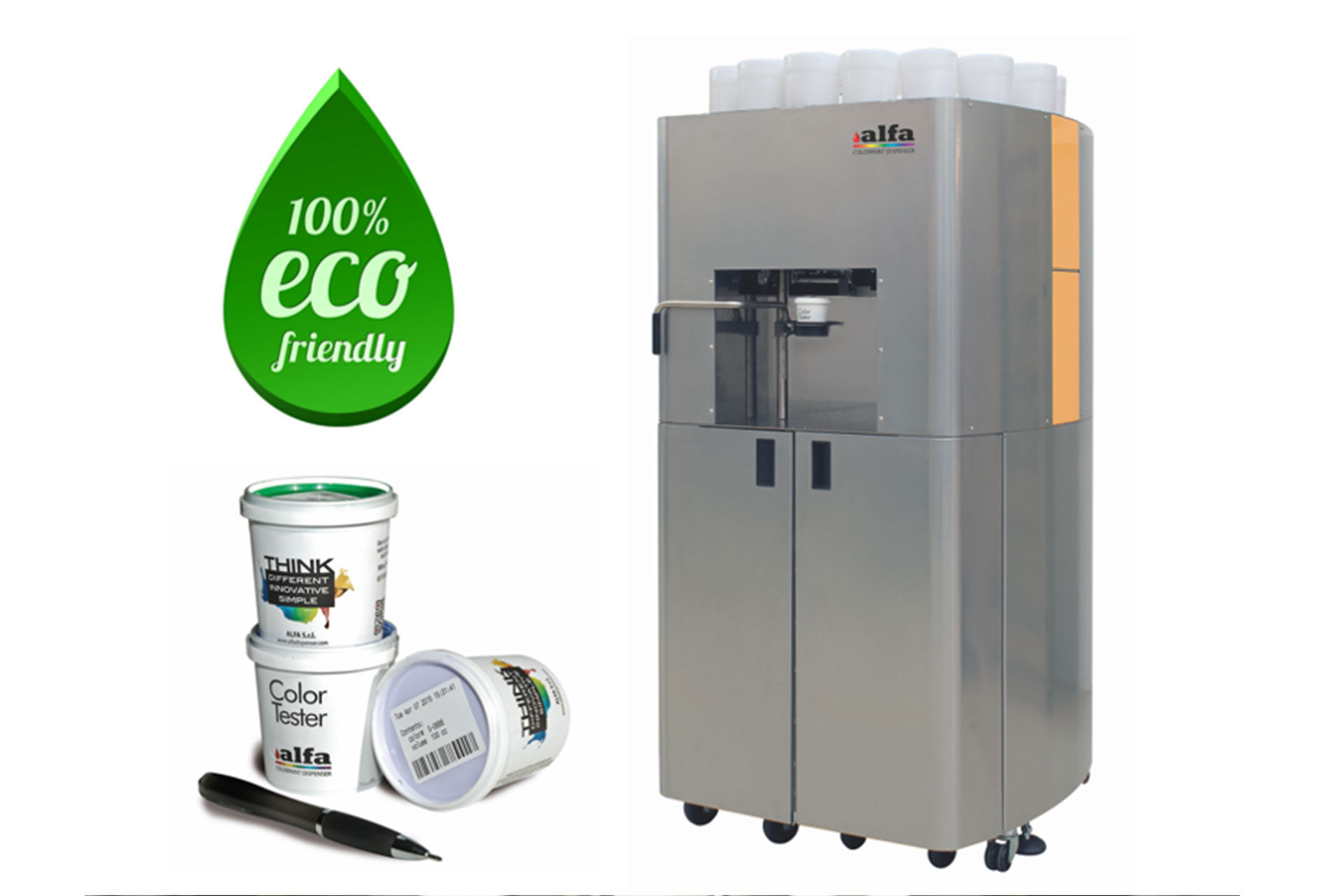

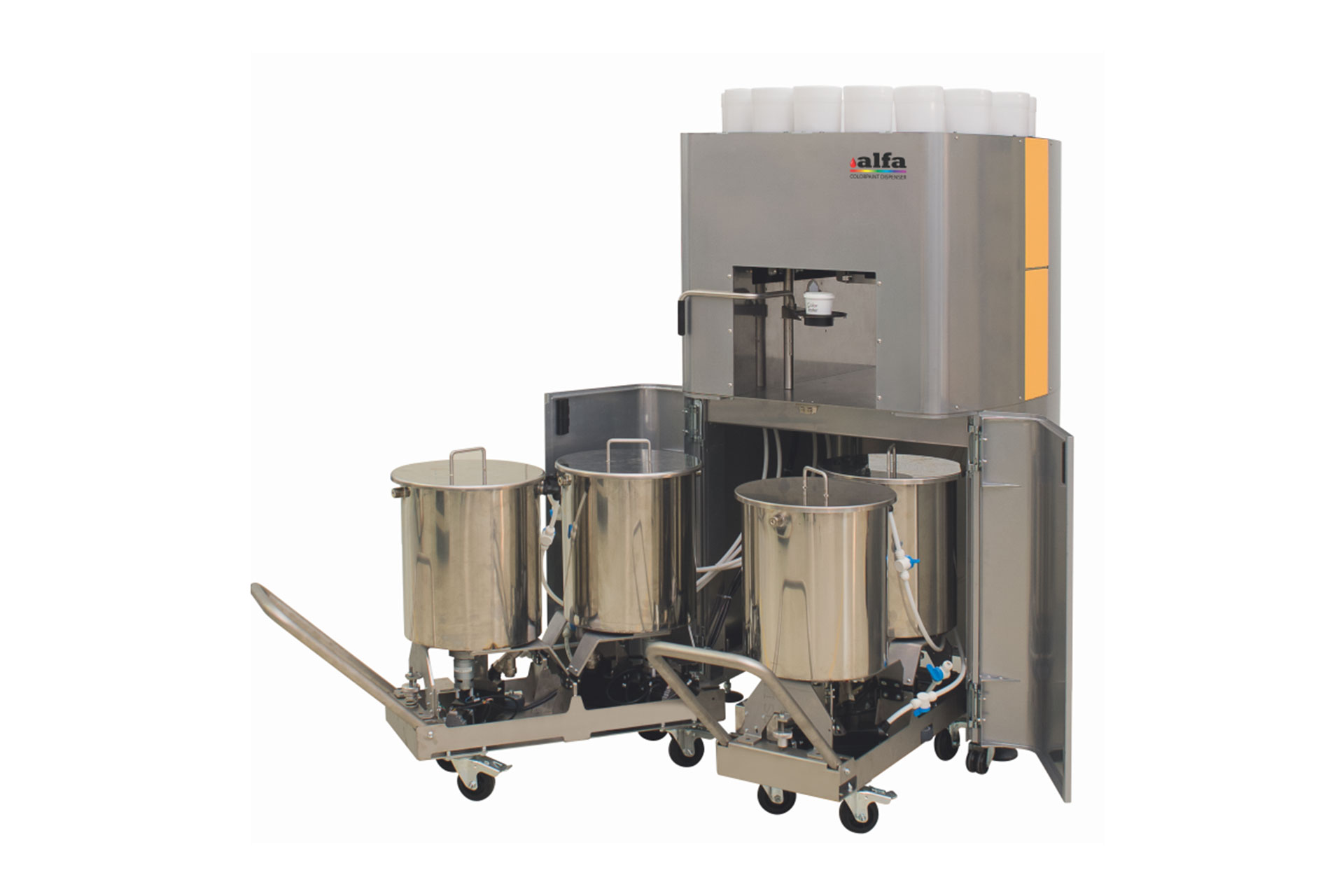

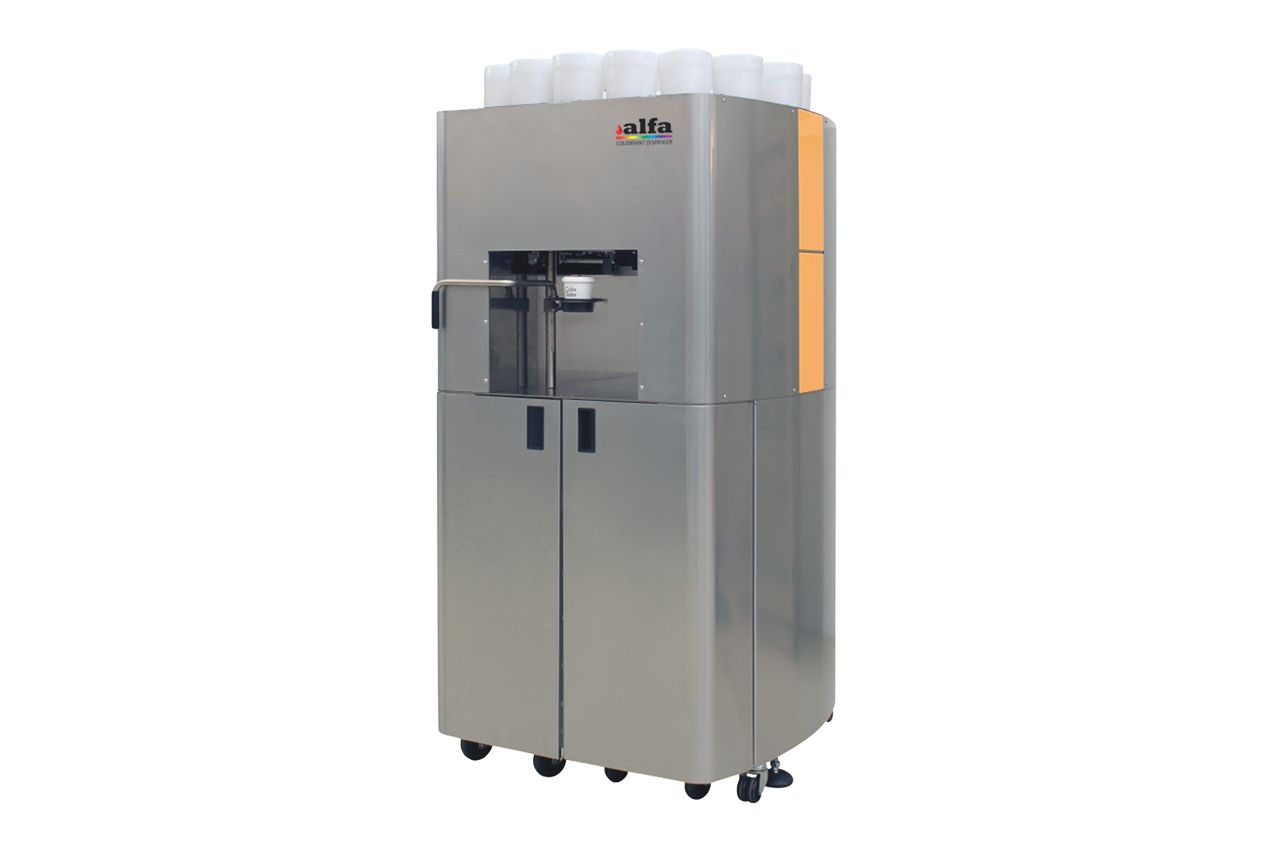

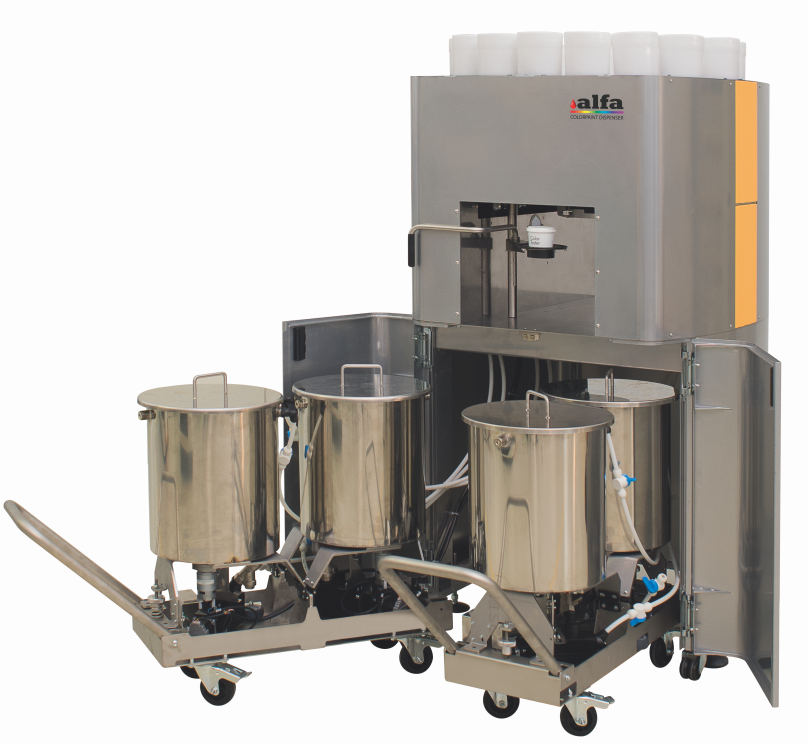

Color Lab is the automatic paint dispenser designed for laboratories that produce color samples every day.
It simultaneously dispenses bases and colorants, reproducing any shade starting from 100 cc in less than a minute.

Each sample is created with absolute precision and repeatability, optimizing time, consumption and resource management without manual intervention.

Specifications

CHARACTERISTICS	COLOR LAB
Dosing technology	Patented Alfa pump
Dispensing flow	Simultaneous colorants and base
Colorants configuration	Up to 16
Colorants canisters size	1,5L
Colorants flow rate	0,05 L/min
Minimum quantity dispensed	1/3840 fl oz (0.0077cc)
Bases configuration	Up to 4
Bases canisters sizes	20L
Bases flow rate	0,25 L/min
Mechanical and digital product level sensors	Standard
Can centering device	Standard
Recirculation and stirring	Standard
Temperature sensor	Standard
Ultrasonic humidifier	Standard
