THOR
HYBRID DISPENSER FOR SAMPLES AND VOLUMES
THOR FEATURES
100cc color samples
Create color samples directly from an empty can with simultaneous dosing of bases and colorants for a fast, precise and effortless process.
Integrated dry brush
Integrated system that keeps valves clean after each dosing, reduces maintenance and ensures production continuity.
Accuracy and repeatability
It does not require recalibration: after the first setup, parameters can be copied from one machine to another, ensuring maximum accuracy and repeatability over time.
Patented variable volume pump
Able to dispensing micro-drops down to 0.01 ml for the production of color samples, with the possibility to increase the flow rate to handle larger volumes in reduced time, while always ensuring extremely precise dosing.
COLOR SAMPLES KIT
Thor can be fitted with a packaging holder column and a capping station, providing all the tools needed to produce color samples in one compact setup.
Optimal products condition
The built-in temperature sensor and heater keep all products at the ideal temperature, preserving their characteristics and ensuring optimal dosing.
Total colorant recirculation
Its 100% colorant recirculation and efficient flow management make color handling effortless and precise, maximizing colorant savings by eliminating the need for purging and drastically reducing waste.
Integration with Mini Mixer
Pairing with the Mini Mixer, which can mix up to 3 samples at the same time, to obtain homogeneous samples quickly and efficiently.
Remote support and minimal maintenance
Two-way communication allows technicians to monitor machine status, troubleshoot remotely and drastically reduce downtime.

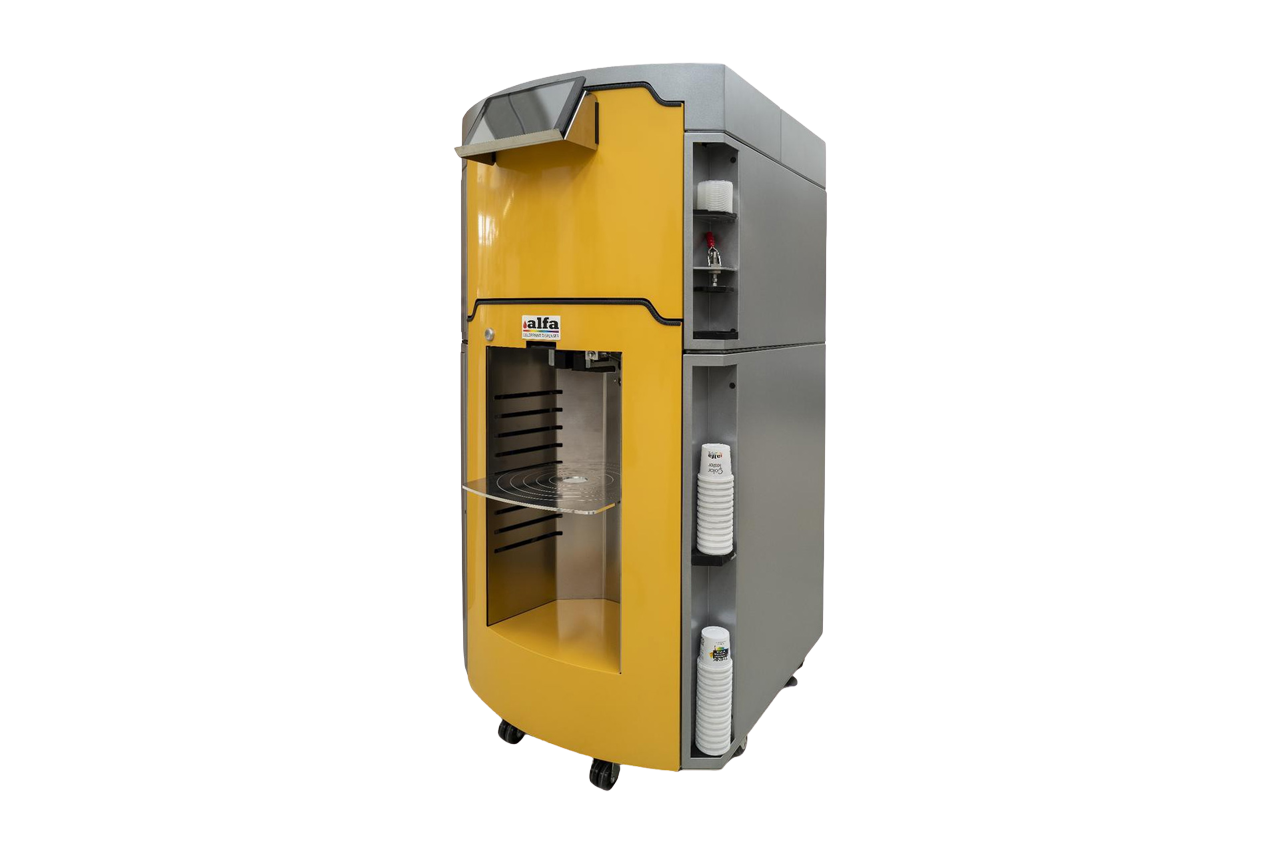

THOR is the automatic paint dispenser designed for medium-to-low productivity retailers that require maximum flexibility. In under 0.5 m², it can produce from 100 cc color samples up to 20 L paint cans, combining precision, efficiency and reliability in a single compact solution.
Thanks to its patented technology and its ability to dispense colorants, bases and semi-finished products, THOR ensures consistently homogeneous colors, reduces waste and operating time, and represents a unique innovation in the industry.

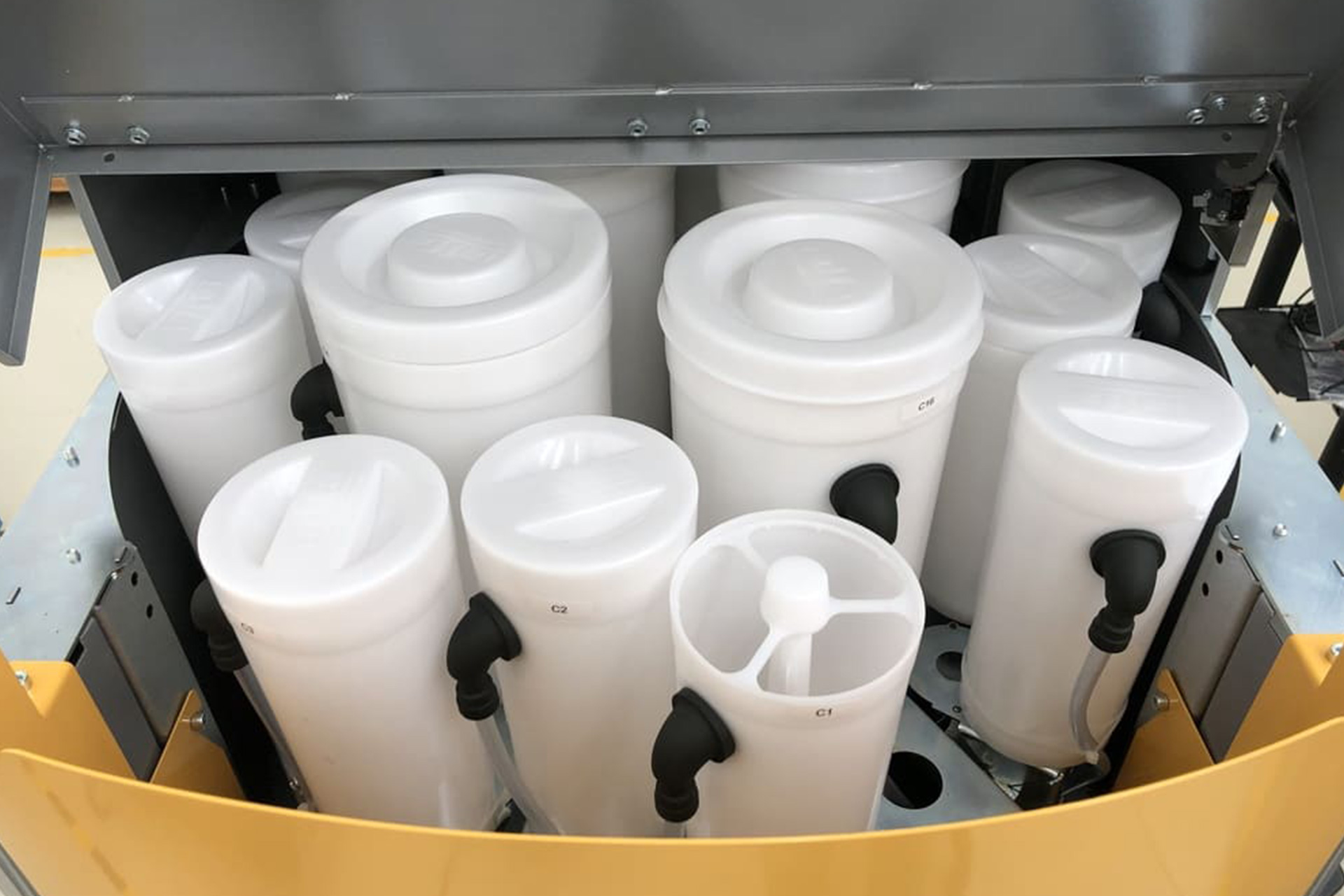

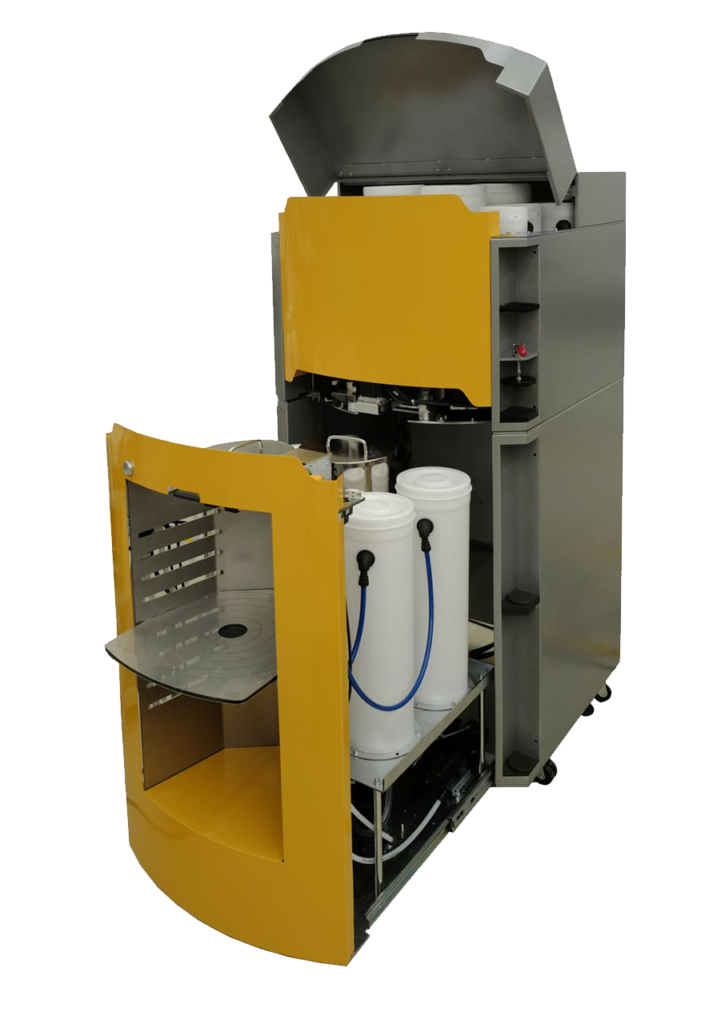

THOR is a hybrid dispenser that combines color sample and volume production in a single compact system. Its upper section holds 16 colorant positions, while the lower section provides up to 5 positions for bases or semi-finished products, enabling just-in-time sample production directly from empty cans. Thanks to the patented variable-flow pump, it can also produce large volumes with ease. This versatility allows small retailers to deliver complete customer service while optimizing space, time, and investment.
THOR TINTING E THOR MASTER
| CHARACTERISTICS | THOR TINTING | THOR MASTER |
|---|---|---|
| Dosing technology | Patented Alfa pump | Patented Alfa pump |
| Colorants configuration | Up to 16 | Up to 16 |
| Colorants canister sizes | 12 x 1.5L + 4 x 3L or 16 x 2.5L | 12 x 1.5L + 4 x 3L or 16 x 2.5L |
| Colorant pump flow rate | 0,25 L/min | 0,25 L/min |
| Colorants dispensing flow | Sequential | Sequential |
| Minimum colorant dispensing volume | 1/3840 fl oz (0.0077cc) | 1/3840 fl oz (0.0077cc)* |
| Semi-finished products configuration | - | Up to 5 |
| Semi-finished products canister sizes | - | 6L – 12L |
| Semi-finished products pump flow rate | - | 0,25L/min - 0,5L - 1,5L/min |
| Semi-finished products dispensing flow | - | Simultaneous |
| Minimum semi-finished products dispensing volume | - | 1/768 fl oz (0.038 cc) |
| Recirculation and stirring | Standard | Standard |
| Temperature sensor | Standard | Standard |
| Ultrasonic humidifier | Not necessary | Standard |
| Can centering device | Optional | Optional |
| Heater | Optional | Optional |
| Sample kit (packaging column and capping station) | Optional | Optional |
